Mac 环境下部署gerrit并与gitlab集成

环境

系统 macOS Mojave 版本 10.14.1

jdk

java -version
java version "1.8.0_131"
Java(TM) SE Runtime Environment (build 1.8.0_131-b11)
Java HotSpot(TM) 64-Bit Server VM (build 25.131-b11, mixed mode)

nginx

nginx -v
nginx version: nginx/1.15.6

git

git version
git version 2.17.2 (Apple Git-113)

安装

从官网上下载 war 包，本章节使用的是 2.16.1版本。

存放目录： /Users/summer/

安装目录：/Users/summer/review_site

进入存放目录执行

java -jar gerrit.war init --batch -d review_site
[2018-12-21 15:27:41,819] [main] INFO  com.google.gerrit.server.config.GerritServerConfigProvider : No /Users/summer/env/gerrit/review_site/etc/gerrit.config; assuming defaults
Generating SSH host key ... rsa... ed25519... ecdsa 256... ecdsa 384... ecdsa 521... done
Initialized /Users/summer/env/gerrit/review_site
Reindexing projects:    100% (2/2)
Reindexed 2 documents in projects index in 0.0s (44.4/s)
Executing /Users/summer/env/gerrit/review_site/bin/gerrit.sh start
Starting Gerrit Code Review: FAILED
error: cannot start Gerrit: exit status 1

进入 /Users/summer/review_site/etc 目录，配置 gerrit.config

[gerrit]
	basePath = git
	serverId = fa24d954-f249-4626-a0a8-3da22d50ab85
	canonicalWebUrl = http://gerrit.bmsoft.com
[database]
	type = h2
	database = /Users/summer/env/gerrit/review_site/db/ReviewDB
[container]
	javaOptions = "-Dflogger.backend_factory=com.google.common.flogger.backend.log4j.Log4jBackendFactory#getInstance"
	javaOptions = "-Dflogger.logging_context=com.google.gerrit.server.logging.LoggingContext#getInstance"
	user = summer
	javaHome = /Library/Java/JavaVirtualMachines/jdk1.8.0_131.jdk/Contents/Home/jre
[index]
	type = LUCENE
[auth]
	type = HTTP
[receive]
	enableSignedPush = false
[sendemail]
	smtpServer = localhost
[sshd]
	listenAddress = *:29418
[httpd]
	listenUrl = http://*:8081/
[cache]
	directory = cache
[plugins]
	allowRemoteAdmin = true

启动 gerrit 服务

sh ~/review_site/bin/gerrit.sh start

启动成功后访问 http://localhost:8081

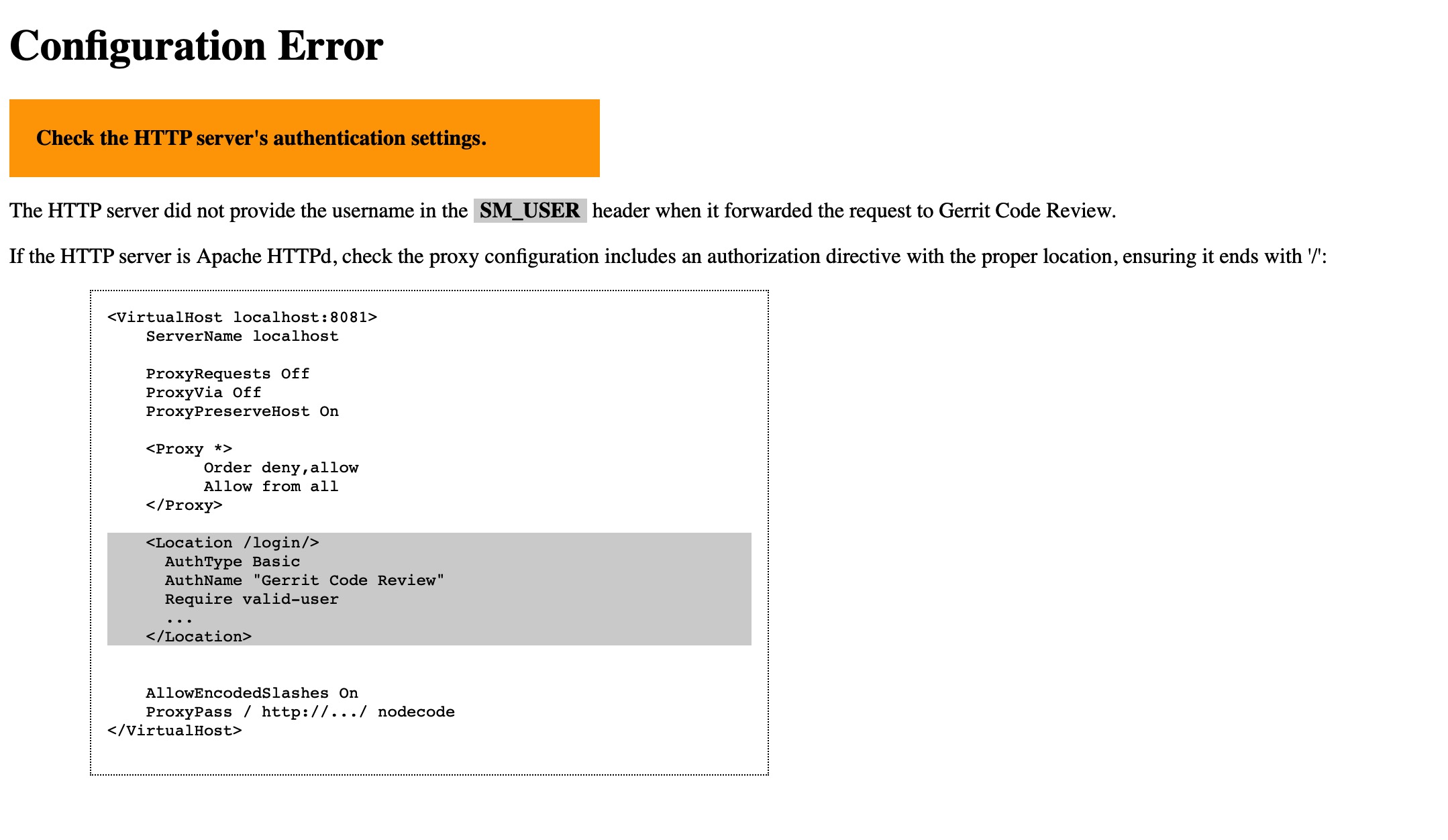

修改认证方式和反向代理

进入 /Users/summer/review_site/etc 目录，新建 passwd 文件

touch passwd

添加账号密码

htpasswd -b passwd admin admin

修改 nginx 配置文件

server {
      listen 80;
      server_name gerrit.summer.com;

      location ^~ / {
            auth_basic "Restricted";
            auth_basic_user_file  /Users/summer/review_site/etc/passwd;
        	proxy_pass        http://127.0.0.1:8099;
        	proxy_set_header  X-Forwarded-For $remote_addr;
        	proxy_set_header  Host $host;
      }
    }

刷新 nginx 配置文件

nginx -s reload

访问 http://gerrit.bmsoft.com 输入账号密码登录，到这里 gerrit 的安装就完成了。

安装插件

进入 /Users/summer/ 解压 gerrit.war包

unzip gerrit.war -d gerrit

在 /Users/summer/gerrit/WEB-INF/plugins 目录下有7个 jar 文件

Gerrit 配置 SSH-KEY

生成 rsa 公钥私钥对

ssh-keygen -t rsa

公钥私钥默认存放在 ~/.ssh 目录 id_rsa id_rsa.pub， 拷贝公钥， 添加到 gerrit 中

pbcopy ~/ssh/id_rsa.pub

安装

进入 /Users/summer/gerrit/WEB-INF/plugins 目录

cd ~/gerrit/WEB-INF/plugins

安装插件

ssh -p 29418 admin@127.0.0.1 gerrit plugin install -n replication.jar $(pwd)/replication.jar
ssh -p 29418 admin@127.0.0.1 gerrit plugin install -n hooks.jar $(pwd)/hooks.jar
ssh -p 29418 admin@127.0.0.1 gerrit plugin install -n commit-message-length-validator.jar $(pwd)/commit-message-length-validator.jar
ssh -p 29418 admin@127.0.0.1 gerrit plugin install -n download-commands.jar $(pwd)/download-commands.jar
ssh -p 29418 admin@127.0.0.1 gerrit plugin install -n reviewnotes.jar $(pwd)/reviewnotes.jar
ssh -p 29418 admin@127.0.0.1 gerrit plugin install -n singleusergroup.jar $(pwd)/singleusergroup.jar

查看插件列表

ssh -p 29418 admin@127.0.0.1 gerrit plugin ls
Name                           Version    Status   File
-------------------------------------------------------------------------------
commit-message-length-validator v2.16.1    ENABLED  commit-message-length-validator.jar
download-commands               v2.16.1    ENABLED  download-commands.jar
hooks                          	v2.16.1    ENABLED  hooks.jar
replication                    	v2.16.1    ENABLED  replication.jar
reviewnotes                    	v2.16.1    ENABLED  reviewnotes.jar
singleusergroup                	v2.16.1    ENABLED  singleusergroup.jar

刷新 plugins

ssh -p 29418 admin@127.0.0.1 gerrit plugin reload

或者重启服务

./gerrit.sh restart

配置 replication

进入 /Users/summer/review_site/etc 目录，新增 replication.config 文件

touch replication.config

配置如下

[remote "gitlab"]
    #这里的git@gitlab.com:summerandwinter 就是官网gitlab ssh 地址
    url = git@gitlab.com:summerandwinter/${name}.git
    push = +refs/heads/*:refs/heads/*
    push = +refs/tags/*:refs/tags/*
    push = +refs/changes/*:refs/changes/*
    timtout = 30
    threads = 3

进入 ~/.ssh 目录，新增 config 文件

touch config

同步 Gitlab

gerrit上新建项目

Gerrit 上新建项目 nodejs-express

同步Giblab 上同名项目结构

进入 /Users/summer/env/gerrit/review_site/git

删除 nodejs-express.git 文件夹

rm -rf nodejs-express.git

克隆裸仓库

git clone --bare git@gitlab.com:summerandwinter/nodejs-express.git

刷新页面会发现 gitlab中的分支信息已经同步到gerrit上了

将gitlab项目同步至本地

git clone git@gitlab.com:summerandwinter/nodejs-express.git

将远程仓库路径改为Gerrit项目仓库路径

git remote set-url origin ssh://admin@gerrit.bmsoft.com:29418/nodejs-express

检出所有分支

列出所有分支

git branch -r
  origin/HEAD -> origin/master
  origin/master

依次检出到本地

git checkout HEAD
git checkout master

推送所有分支和标签到Gerrit上

git push --all
git push --tags

现在Gitlab上的项目已经成功同步到 gerrit 上了，现在从 gerrit 上 clone 代码

git clone ssh://admin@gerrit.bmsoft.com:29418/nodejs-express && scp -p -P 29418 admin@gerrit.bmsoft.com:hooks/commit-msg nodejs-express/.git/hooks/
Cloning into 'nodejs-express'...
remote: Counting objects: 26, done
remote: Finding sources: 100% (26/26)
remote: Total 26 (delta 3), reused 26 (delta 3)
Receiving objects: 100% (26/26), 4.79 KiB | 2.40 MiB/s, done.
Resolving deltas: 100% (3/3), done.
commit-msg                                    100% 1392     2.2MB/s   00:00

修改项目中的一些文件，然后提交，这里提交的步骤跟正常的步骤没有不同

git add *
git commit -m 'Make some change'

推送到 gerrit

git push origin master:refs/for/master
Counting objects: 3, done.
Delta compression using up to 8 threads.
Compressing objects: 100% (3/3), done.
Writing objects: 100% (3/3), 342 bytes | 342.00 KiB/s, done.
Total 3 (delta 2), reused 0 (delta 0)
remote: Resolving deltas: 100% (2/2)
remote: Processing changes: refs: 1, new: 1, done
remote:
remote: SUCCESS
remote:
remote: New Changes:
remote:   http://gerrit.bmsoft.com/c/nodejs-express/+/1 一些改动
To ssh://gerrit.bmsoft.com:29418/nodejs-express
 * [new branch]      master -> refs/for/master

这里需要提交到 refs/for/master 分支

刷新 gerrit 首页会看到我们刚刚的提交出现在了 Outgoing reviews 列表看到刚刚提交的修改
